Badminton Court Flooring
Dongxing Badminton Court Mat
We provide badminton court mats that meet BWF certification standards and perform to tournament requirements. Installing a court requires only four rolls of PVC flooring. As a manufacturer, you can customize our badminton court mats with thickness, surface patterns, colors, logos, and more.
Standard doubles badminton court:
13.4m (length) × 6.1m (width), with a buffer zone of 1.5-2.0m on each side.

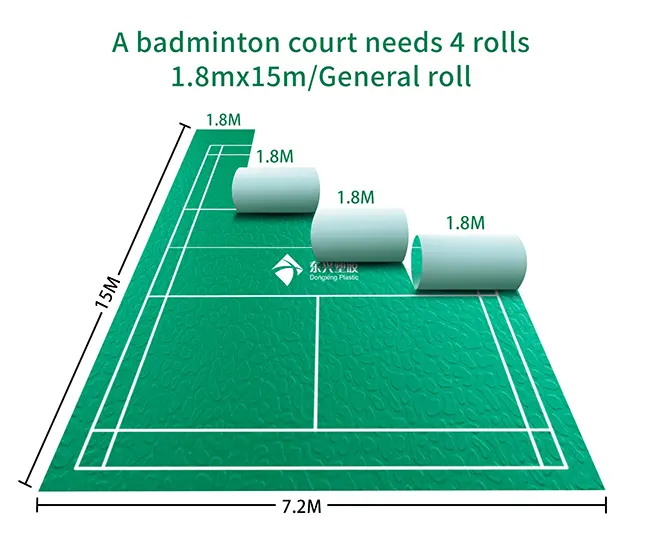

Sheet configuration:
4 rolls of 1.8m × 15m sheet (1.8m × 4 = 7.2m, covering the court width + buffer zone; 15m length covering the court length + buffer zone).
Indoor badminton court solutions
BWF-PVC Badminton Flooring with Crystal Sand
- Model: 1309J
- Surface: Crystal Sand (BWF)
- Roll With: 1.8m
- Roll Length: 15m
- Thickness: 4.5mm-12mm
- Color: any
- Application: badminton court
- MOQ: 1000 sqm
PVC Flooring Badminton Court with Big Sand
- Model: DX1326
- Surface: Big Sand
- Roll With: 1.8m
- Roll Length: 15m
- Thickness: 4.5mm-10mm
- Color: any
- Application: badminton court
- MOQ: 1000 sqm
Portable Badminton Court Mat
- Model: 1308P
- Surface: loofah, paper-textured crystal sand
- Roll With: 1.8m
- Roll Length: 15m
- Thickness: 4.5mm-8.0mm
- Style: zipper, velcro
- Application: portable badminton court
- MOQ: 500 sqm
Indoor Badminton Mat for Hardwood Court
- Model: 1310
- Surface: crystal sand (NBR)
- Roll With: 1.8m
- Roll Length: 15m
- Thickness: 4.5~12.0mm
- Color: green, other
- Application: indoor hardwood courts, multi-purpose sports hall
- MOQ: 500 sqm
Technical Specifications
| Specification | Details |
|---|---|
| Material | 100% Pure PVC |
Common Roll Size | 1.8m × 15m |
| Common Thickness | 3.5mm, 4.5mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm |
| Color | Green, Dark green, Pink, Purple, Blue, etc. optional |
| Usage | Badminton Court |
| Certification | BWF, ITTF, ITF, ISO9001, ISO14001, OHSAS18001, CE |
| Function | Shock absorption; Ball rebound; Slip resistance; Antibacterial |
| MOQ | 1000m² |
| Package | Waterproof craft paper in rolls |
| Delivery | Within 15 days after receiving the deposit |
| Property | Method | Result | EN 14904:2006 Requirement | EN Pass/Fail | BWF Requirement | BWF Pass/Fail |
|---|---|---|---|---|---|---|
| Thickness | EN 1969 | 7.3 mm | N/A | N/A | N/A | N/A |
| Shock Absorption | EN 14808 | 29% (-0/+1) | 25-75% ±5 from the mean | Pass | 25-75 ±5 from the mean | Pass |
| Vertical Deformation | EN 14809 | 1.2 mm | ≤5.0 mm | Pass | ≤5.0 mm | Pass |
| Friction | EN 13036-4 (CEN rubber, dry) | 87 (+1) | 80-110 ±4 from the mean | Pass | 80-110 ±4 from the mean | Pass |
Portable badminton court solution

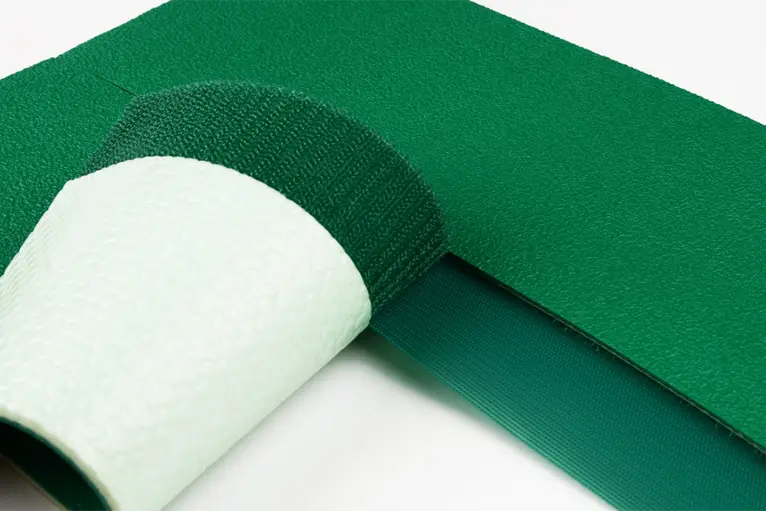

Velcro System
Using Velcro instead of welding rod, this type of flooring allows for quick and tool-free installation. The strong adhesion allows for easy retraction, creating a stable and seamless badminton court surface, ideal for temporary or multi-functional venues.

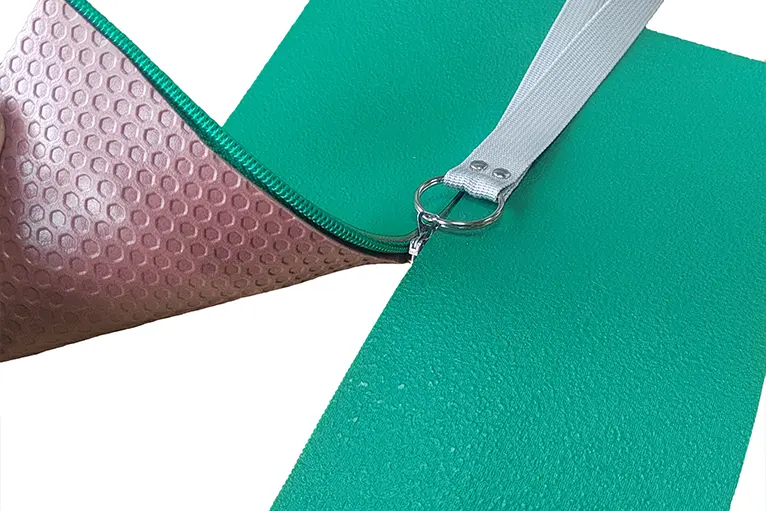

Zipper System
The zipper system uses zippers for installation and removal of each roll of flooring, making it ideal for semi-permanent badminton court installations, perfect for temporary events and multi-functional courts.

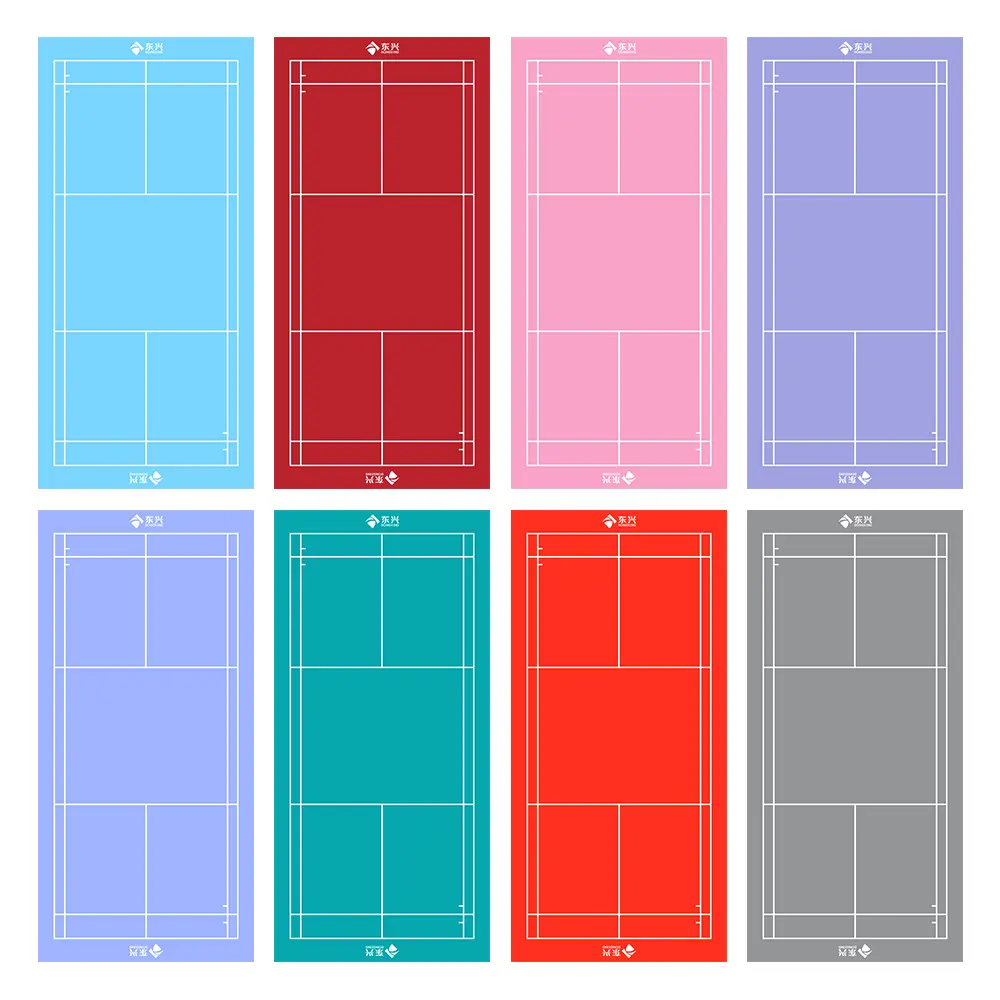

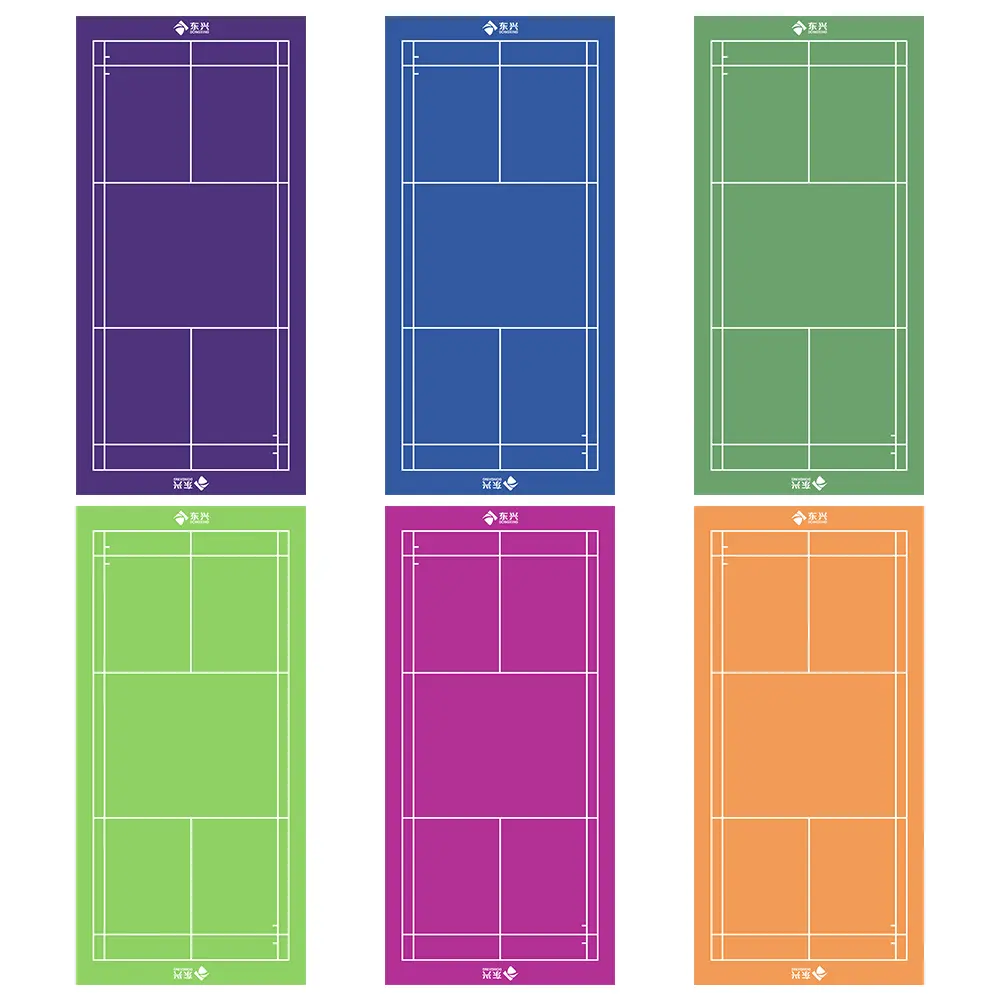

Customize badminton court colors, patterns, and logos!

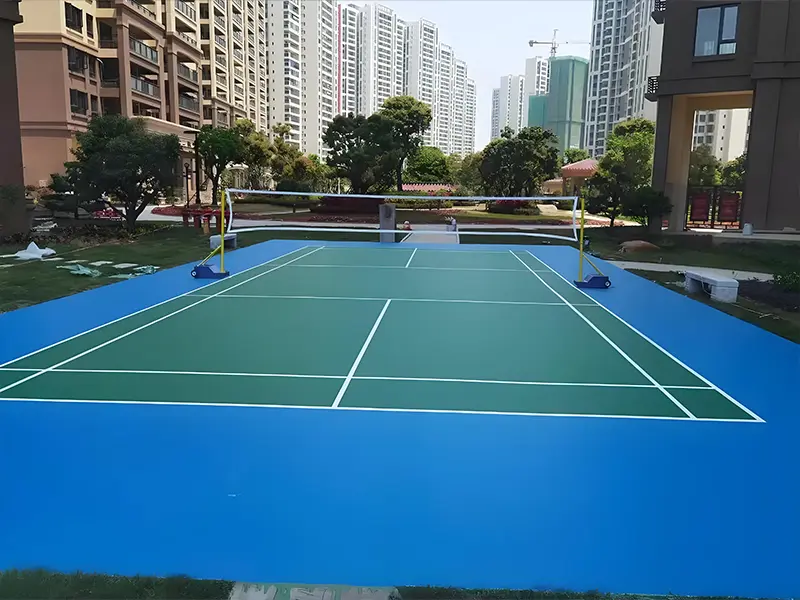

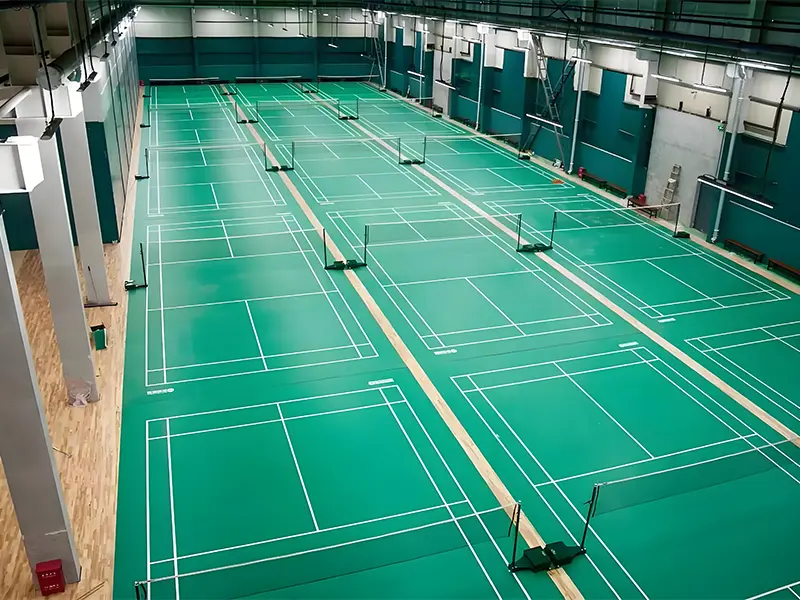

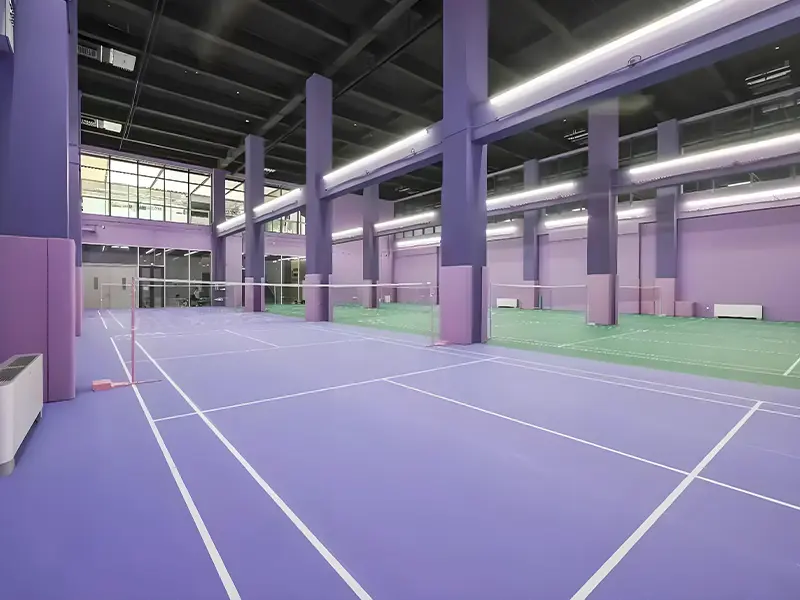

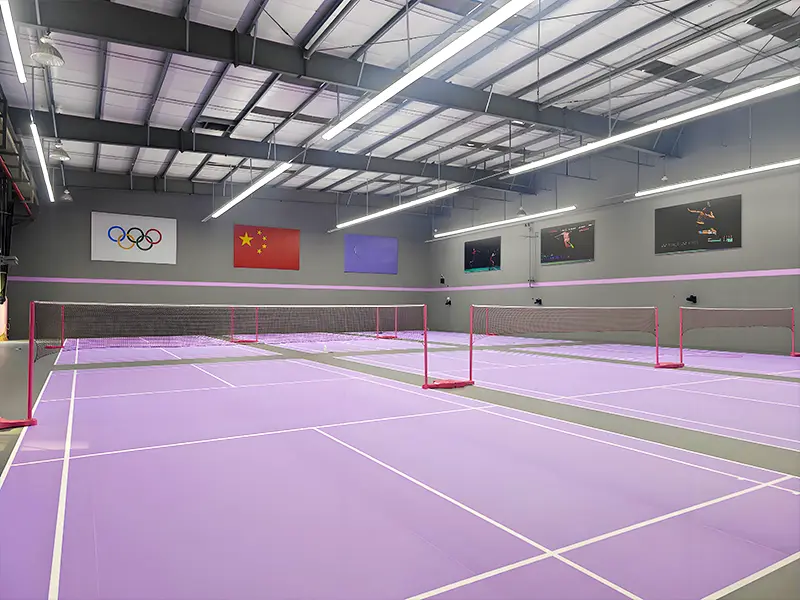

Application Cases

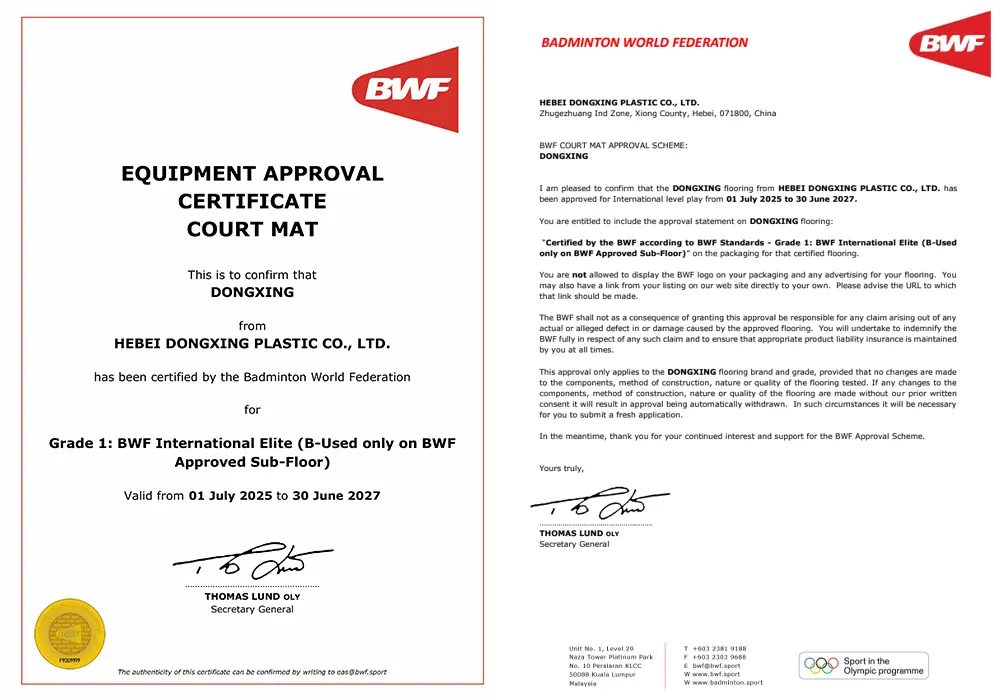

BWF Certificate
The Badminton World Federation (BWF) standard represents the gold standard for professional badminton court surfaces, setting stringent performance requirements for shock absorption, rebound, slip resistance, dimensional stability, and player safety.
Dongxing Plastic’ badminton court mats fully comply with BWF performance specifications, representing our utmost commitment to our users. Please verify this on the BWF website.

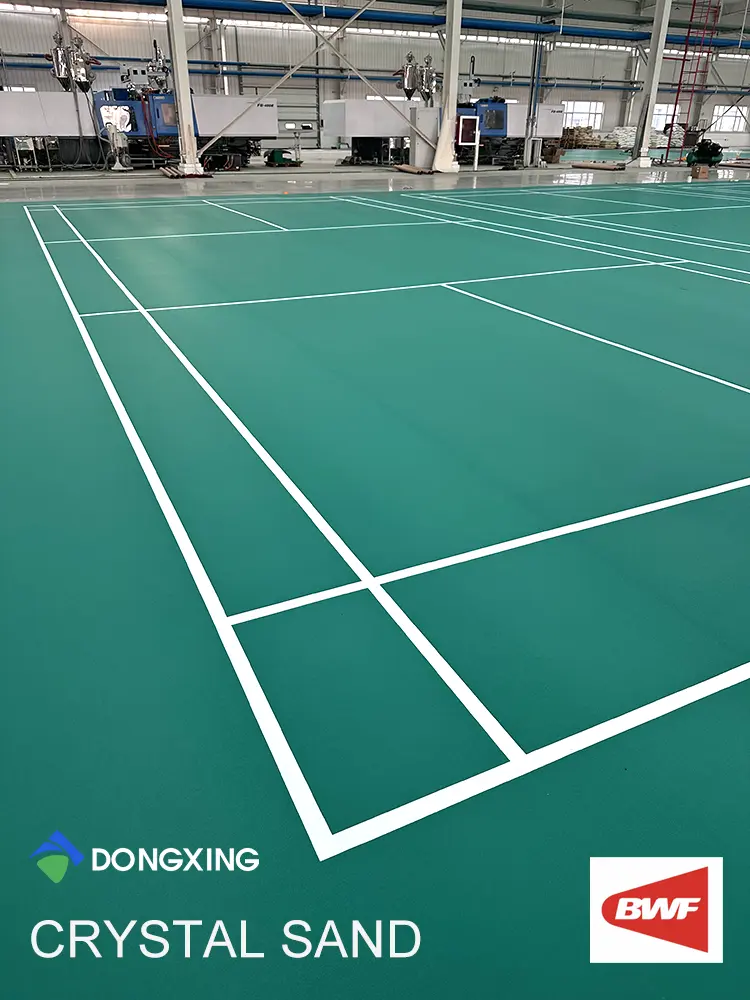

DONGXING 7.0 mm BWF Approved Badminton Flooring
Build your professional badminton court by choosing BWF-certified PVC sports flooring!
| Specification | Details |
|---|---|
| Pattern | Crystal Sand |
| Thickness | 7.0mm |
| Roll Width | 1.8m |
| Roll Length | 10-20m |
| Material | 100% Pure PVC |
| Color | Green, Purple, Blue, Pink |
| Packing | Packed in rolls |
| Applicable Areas | Competitions, training, clubs, etc. |
Passed the LABOSPORT Test
We passed the impact absorption, vertical deformation and friction tests in accordance with EN14904 (06/2006) and BWF certified equipment flooring requirements.
- Thickness（EN 1969:2000）
- Shock Absorption（EN 14808:2005）
- Vertical Deformation（EN 14809:2005）
- Friction（EN 13036-4:2011 (CEN rubber, dry）

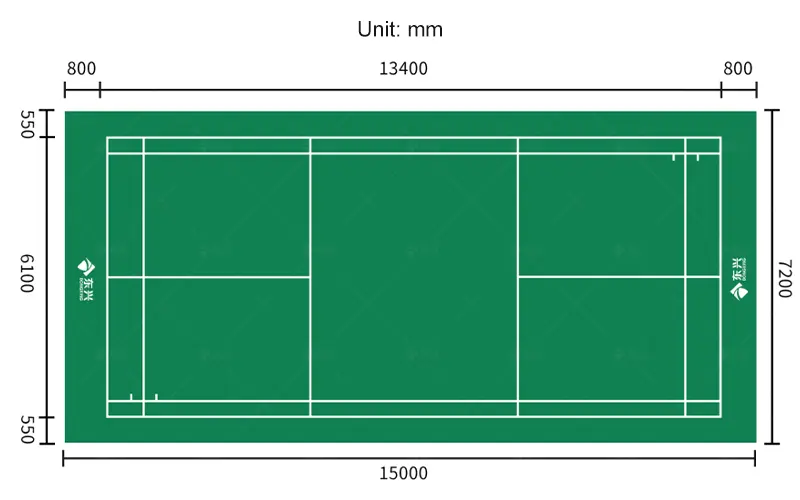

Standard badminton court size
The total area of a badminton court should be no less than 15 meters long and at least 7.1 meters wide, with a total coverage area of approximately 106.5 square meters.
The PVC flooring rolls should have as few seams as possible, with only 3 welded lines per court.

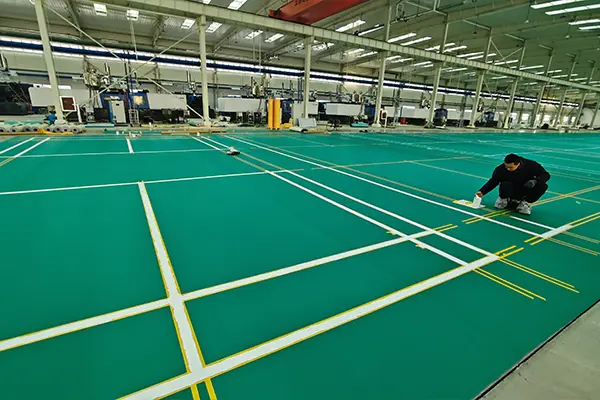

We will mark each roll and provide a court line drawing; simply lay the flooring according to the marked order for correct installation.

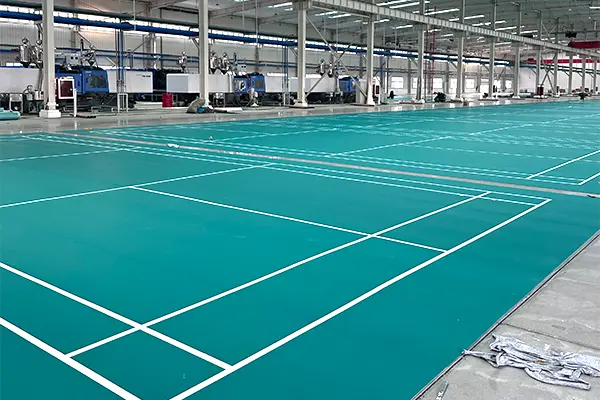

Professional badminton court flooring manufacturer, customized solutions!
With 30 years of production experience and authoritative certifications, we are committed to providing you with manufacturing advantages and complete quality control from raw materials to finished products.
